Description

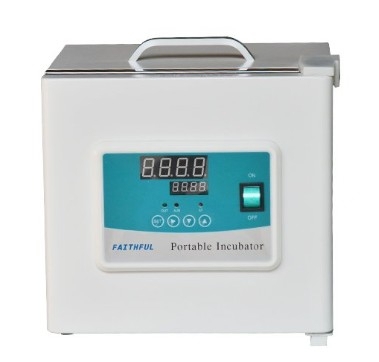

Can carry the training equipment everywhere
|
Model |
DH2500AB |
|
|
Cycle Mode |
Natural convection |
|
|
Function |
Tem. Range |
RT+5-50℃ |
|
Tem. Resolution Ratio |
0.1℃ |
|
|
Tem. Motion |
±0.5℃ |
|
|
Tem. Uniformity |
±1.5℃ |
|
|
Structure |
Inner Chamber |
Mirror stainless steel |
|
Outer Shell |
Cold rolling steel electrostatic spraying exterior |
|
|
Insulation layer |
Polyurethane |
|
|
Heater |
Heating Wire |
|
|
Power Rating |
0.3kW |
|
|
Controller |
Tem. control mode |
PID Intelligent |
|
Tem. setting mode |
Touch button setting |
|
|
Tem. display mode |
Measuring temperature: LED upper row ；Setting temperature: the lower row |
|
|
Timer |
0-9999min (with timing wait function) |
|
|
Operation function |
Fixed temperature operation, timing function,auto stop. |
|
|
Additional funciton |
Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
|
|
Sensor |
CU50 |
|
|
Safety device |
Over temperature sound-light alarm |
|
|
Specification |
Inner Chamber size(W*L*H) (mm) |
200*160*230 |
|
Exterior size (W*L*H) (mm) |
300*330*330 |
|
|
Packing size (W*L*H) (mm) |
340*370*390 |
|
|
Volume |
7.4L |
|
|
Supply(50/60HZ) Current rating |
AC220V/1.3A |
|
|
NW/GW (kg） |
9/11 |
|
|
Optional accessories |
Vehicular supply/DC12Vsupply |
|
