Description

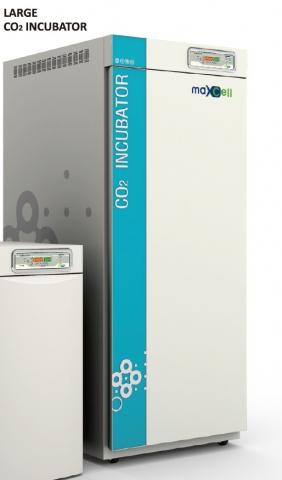

NB-203XXL Large 850 litres CO2 incubator
The incubator is ideal for the experiments involving cultivation of animal cells, sperm/ovum, anaerobic cells, all types of microbe cells, hatching/germinating and special tissues.
Special features:
Natural Air and Moisture Convection:
Air and Moisture in chamber are distributed naturally by 6 side heating, air circulation fan.
Rounded Conner allows easy cleaning. Entire chamber is made of stainless steel (SUS304).
Alarm System:
Buzzer to alarm low or high deviation of CO2, Temperature.
Perforated Shelves are good for natural air flows and are made of stainless steel which are resistant against rust and contamination.
Access Port (Optional) for additional device used in chamber.
Over Heating Limit:
Heating is automatically cut by safety device when temperature control failed or there is excessive heating over set point.
|
Items |
NB-203XXL |
|
Temperature |
|
|
range |
Ambient +5°C to 60°C |
|
accuracy |
±0.5°C at 37°C |
|
increment |
0.1°C |
|
control |
Microprocessor Digital PID |
|
CO2 |
|
|
range |
0% to 20% |
|
accuracy |
±0.1% at 5% at 37°C |
|
increment |
0.1% |
|
sensor |
IR CO2 sensor |
|
control |
Microprocessor |
|
inlet pressure range |
0.9~1.0 bar |
|
Door |
|
|
out door |
Silicon packing magnet door |
|
inner door |
Tempered Glass Door |
|
Operating panel |
Individual 2 Channel Touch Button |
|
Display |
LED Display |
|
Jacket type |
Air jacket type (6 sides heating) |
|
Chamber material |
Stainless Steel (304) |
|
Chamber volume |
850 liter |
|
Number of shelves |
3ea (Max shelves 15ea) |
|
Chamber dimension |
698(W)x799(D)x1528(H)mm |
|
Overall dimension |
820(W)x950(D)x1840(H)mm |
|
Power |
110/220V, 50/60Hz, 1.2kW |
|
Weight |
266kg |
Accessories:
- Gas regulator
- CO2 analyzer
- Shelves
