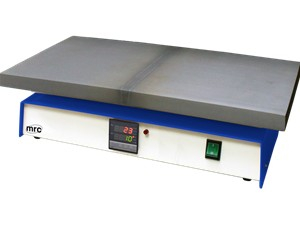

HP-D series digital and programable laboratory hotplate

Serial: MRC HP-D Manufacturer: MRC Lab

Description

Digital & Programmable Hotplates, Aluminium Top, 40-300°C (optional 400°C) temperature range




Features

  • Temperature can be displayed in °C or °F.
  • Digital timer and ramp to temperature function.
  • Digital set-point and read-out of actual temperature.
  • PID microprocessor controller provides precise temperature regulation all over the temp. range, include the low temp close to the ambient.
  • Temperature may be controlled either at the plate surface by internal sensor,or at the sample by a Thermocouple Immersion probe.
  • Safety: in the event of broken sensor, power to the heater is shut-down.
  • Temperature range: above ambient to 300°C (optional 400°C).
  • Chemical resistant top plate, easy to clean.
  • Excellent heat conduction distributes the heat evenly & uniformity over the entire heating surface.
  • Pilot lamp indicates when heat is on.
  • Special radiation shields keep apparatus relatively cool during continuous operation.
  • Support device at the rear of the base.
  • Option: External temp. sensor 200mm length, 3.2mm diameter.





Application

  • Distillations, extractions and digestions
  • Heat aqueous reagents
  • Semiconductor baking
  • Acid/ Base digestions - trace metal analysis. etc.
  • Sample drying
  • General reagent heating
  • Heating TLC plates
  • Evaporations
  • Warning/curing applications-pastes, adhesives, & solder
  • Viscosity studies
  • Reaction optimization
  • Solubility studies
  • Safety thermostat.



Model

Temp.
range

Top
plate

DImensions
WxHxD (mm)

Watts

Weight

HP-1D

40-300°C (optional 400°C)

115 x 115

140 x 110 x 220

450W

1.3kg

HP-4D

175 x 175

200 x 150 x 260

750W

2.4kg

GHP-4D

250 x 250

250 x 150 x 260

1 500W

3.4kg

GHP-4X2D

500 x 250

500 x 150 x 250

3 000W

6.6kg

HP-1X5D

588 x 115

600 x 150 x 145

2 000W

5kg

SHP-4X2D



500 x 250

500 x 200 x 250

3 000W

6.6kg
