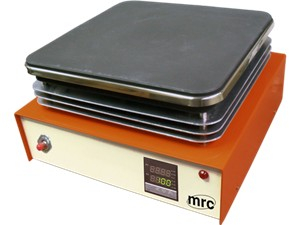

HOP series aluminium top hotplates

Serial: MRC HOP Manufacturer: MRC Lab

Description

Chemical resistant hotplate with 40-300°C (optional 350°C) temperature range.






Features:

  • Chemical resistant top plate, easy to clean.
  • Excellent heat conduction distributes the heat evenly and uniformity over the entire heating surface.
  • Sensitive “stepless” temperature control is maintained by means of a hydraulic thermostat with minimum overshoot and undershoot. Making possible the processing of delicate materials at low critical temperatures.
  • Pilot lamp indicates when heat is on.
  • Special radiation shields keep apparatus relatively cool during continuous operation.
  • Supplied with a 3-wire line cord and sturdy screw type support device at the rear of the base to hold standard rod.



Application

  • Distillations, extractions & digestions
  • Heat aqueous reagents
  • Semiconductor baking
  • Acid/Base digestions - trace metal analysis. etc.
  • Sample drying
  • General reagent heating
  • Heating TLC plates
  • Evaporations
  • Warning/curing applications - pastes, adhesives, & solder
  • Ideal for general lab heating
  • Liquid evaporations



Model

Temperature range

Top plate

Size

WxHxD
(mm)

Watts

Weight

HP-1

40-300°C (optional 350°C)

115 x 115

140 x 110 x 220

450W

1.2kg

HP-4

175 x 175

200 x 150 x 260

750W

2.3kg

GHP-4

250 x 250

250 x 150 x 260

1 500W

3.3kg

GHP-4X2

500 x 250

500 x 150 x 250

3 000W

6.5kg

HP-1X5

588 x 115

600 x 150 x 145

2 000W

5kg
