Description

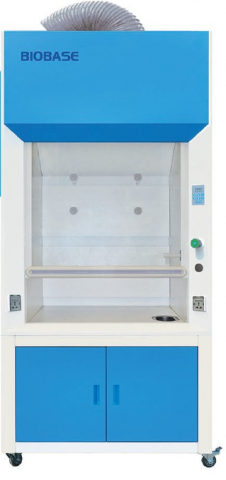

Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
1. UV lamp for sterilization.
2. Resistant to weak acid and alkali.
3. Adjustable air speed :9 levels.
4. Motorized front window, height adjustable.
5. Microprocessor control system, LED display.
6. With memory function in case of power-failure.
|
Model |
FH1000(A) |
FH1200(A) |
FH1500(A) |
FH1800(A) |
|
|
External Size (W*D*H) |
1040*800*2200mm |
1240*800*2200mm |
1540*800*2200mm |
1840*800*2200mm |
|
|
Internal Size (W*D*H) |
820*670*730mm |
1020*670*730mm |
1320*670*730mm |
1620*670*730mm |
|
|
Work Surface Height |
850 mm |
||||
|
Max Opening |
500 mm |
||||
|
Air Velocity |
0.3 ~ 0.8 m/s |
||||
|
Noise |
≤60dB |
||||
|
Exhaust Duct |
PVC, Standard length:4 meters |
||||
|
D= 300 mm |
|||||
|
LED Lamp |
8 W *1 |
12 W *1 |
16 W *1 |
16 W *1 |
|
|
UV Lamp |
Emission of 253.7 nanometers for most efficient decontamination |
||||
|
Blower |
Built-inPP centrifugal blower; Speed adjustable |
||||
|
Front Window |
5mm toughened glass; Motorized; Height adjustable. |
||||
|
Power Supply |
AC220V±10%,50/60Hz;110V±10%, 60Hz |
||||
|
Consumption |
400 W |
400 W |
500 W |
500 W |
|
|
Material |
Exterior |
Cold-rolled steel with anti-bacteria powder coating. |
|||
|
Interior |
High grade melamine board with good acid and alkali resistance function |
||||
|
Work table |
Chemical resistant phenolic resin |
||||
|
Standard Accessory |
UV lamp*2,LED lamp, Water tap, Gas tap, Water sink, Base cabinet Total load of 2 waterproof sockets: 500W 4-meter PVC exhaust duct, pipe strap |
||||
