Description
Graphite Digester with 450 °C maximal temperature

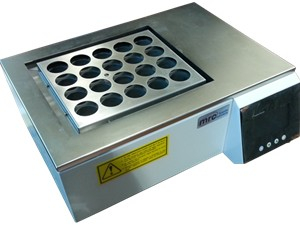

GD-22 Graphite Digester includes globally advanced technology, featuresquick digestion, high efficiency and easy for use, etc., is widely used in suchfields as food, medicine, agriculture, forestry, environmental protection,chemical engineering, biochemistry, as well as universities, researchdepartments and so on, for sample digestion prior to the chemicalanalysis of soil, feed, plants, seeds, minerals etc., suitable for matchingDIST-984 analyzer.
Characteristics:
- Continuously adjustable furnace temp.,constant temperature control andsimple operation.
- Smaller average temperaturedifference inside furnace, consistentsample digestion effect and high heattransfer efficiency.
- Its chamber is made of stainless steel,enjoying excellent corrosion resistance.
- The use of anti-corrosive partsenhances its service life.
- It enjoys multiple protections againstover-voltage, over current,overheating, and so on.
- The sample is given uniform heating, toprevent heat loss to the maximumextent.
- Superior heater ensures temperatureuniformity among the digestion holes.
- Double-casing design offer doubleinsulations i.e. air and aluminum silicatethermal insulating layers.
|
Model |
GD-22 |
| Temperature range | Room temperature ~4500°C |
| Heating method | Infrared heating & high-purity graphite conduction |
| Temperature accuracy | ±10 °C |
| Digestion tube capacity | 280 ml |
| Processing capacity | 20 pcs |
| Heat insulation material | High-density aluminum silicate |
| Power supply | 220V 50Hz |
| Power | 3.6 kW |
| Size | 534 mm × 453 mm × 218 mm |
